Modern Timber Windows & Vacuum Glazing: A New Era for Historic and Listed Buildings
For many years, owners of listed and historic properties have faced a difficult choice when upgrading their windows.
Retain traditional single glazing and accept comparatively poor thermal performance, or introduce modern glazing that can risk changing the appearance and character of the building.
Advances in modern timber windows and vacuum glazing are beginning to change that.
Modern timber joinery can reproduce traditional window profiles with exceptional accuracy, while new vacuum-insulated glass can achieve impressive thermal performance in a unit only a fraction of the thickness of conventional double or triple glazing.
Perhaps most importantly for owners of historic properties, attitudes towards these technologies are evolving.
Historic England's 2026 guidance now states that the installation of slim-profile or vacuum double glazing within historic frames will generally be acceptable, subject to important exceptions and the significance of the individual building and windows.
For historic buildings, this potentially represents a major step forward.
Why Are Windows So Important?
Windows have a considerable effect on the appearance, comfort and energy performance of a property.
In a listed building they can also be an important part of its architectural significance.
This is why replacing an old window with a standard modern unit isn't always appropriate.
The challenge is achieving better thermal performance, weather resistance, security and longevity while maintaining the proportions and character of traditional windows.
Modern bespoke timber windows offer an increasingly effective way of achieving that balance.
Modern Timber Windows Have Come a Long Way
A properly manufactured modern timber window is very different from the poorly maintained softwood windows many people associate with older properties.
Today's high-quality timber windows can use engineered and modified timbers, modern coatings, improved seals, high-performance ironmongery and advanced glazing systems.
When correctly designed and manufactured, they can offer:
- Excellent thermal performance
- Traditional sightlines and proportions
- High-quality draught seals
- Improved acoustic performance
- Modern security
- Long service life
- Repairability
- A natural material appropriate to historic buildings
- Bespoke profiles to replicate existing windows
- Compatibility with modern glazing technologies
For heritage projects, one of timber's greatest advantages is flexibility.
Rather than trying to make a standard factory-produced window fit an historic opening, a skilled joinery manufacturer can produce a window specifically for that building.
The Problem With Traditional Single Glazing
Traditional single glazing is incredibly thin and has helped define the appearance of historic windows for centuries.
Its weakness is thermal performance.
A typical pane of single glass has a U-value of around 5.8 W/m²K. The lower the U-value, the better the insulation.
That means single glazing allows substantially more heat to escape than modern glazing systems.
There can also be increased cold downdraughts and internal condensation during colder weather.
However, simply replacing it with conventional double glazing isn't always straightforward.
Why Conventional Double Glazing Can Be Difficult in Historic Windows
A conventional insulated glass unit contains two panes separated by a sealed cavity, normally filled with air or an inert gas such as argon.
Modern double glazing can provide very good thermal performance, with centre-pane U-values commonly around 1.0–1.2 W/m²K, depending upon specification.
The difficulty in heritage applications is often its thickness.
Installing a conventional double-glazed unit can require thicker glazing bars, deeper rebates and heavier sections of timber.
On a traditional Georgian-style or multi-pane window, those apparently small dimensional changes can materially alter its appearance.
This is one of the reasons conservation officers have historically been cautious about permitting conventional double glazing in important historic windows.
What About Triple Glazing?
Triple glazing adds another pane and cavity.
It can achieve excellent thermal performance, potentially around 0.5–0.8 W/m²K at the centre of the glass depending upon the system.
But it is considerably thicker and heavier.
That makes it extremely useful for certain modern buildings but much harder to incorporate sympathetically into traditional fine-profile windows.
Historic England also notes that, when considering whole-life environmental impact, triple glazing may not always be justified over other solutions for historic buildings.
Then There Is Vacuum Glass
Vacuum glazing takes a completely different approach.
Instead of using a relatively large gas-filled cavity between the panes, the two sheets of glass are separated by a microscopic space from which the air is removed.
The vacuum dramatically reduces heat transfer.
The result is a remarkably thin glazing unit with thermal performance comparable with high-quality conventional double glazing.
Some commercially available vacuum glass is only around 6–8mm thick.
Pilkington, for example, states that its Spacia vacuum glazing is approximately 6mm thick and provides around four times the thermal insulation of single glazing.
This is what makes vacuum glass particularly interesting for historic buildings.
It potentially allows us to combine traditional-looking timber window profiles with modern thermal performance.

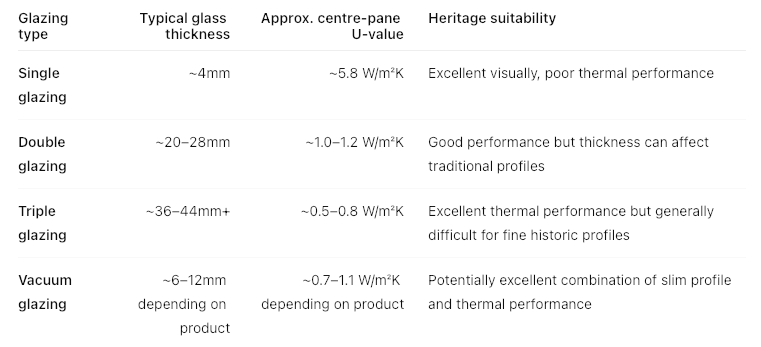

Single vs Double vs Triple vs Vacuum Glazing
The exact performance varies significantly between manufacturers, coatings, gas fills, spacers, frame designs and glass specifications, so figures should always be checked for the particular product.
Lower U-values indicate better insulation.
There is an important distinction here: these are glass U-values (Ug) for comparison. Building Regulations generally assess the performance of the whole window (Uw), including the timber frame and glazing, rather than simply the glass itself. The 2026 Approved Document L explicitly requires the whole window to be considered when determining window U-values.
Why Vacuum Glass Could Be a Game-Changer for Listed Buildings
The greatest advantage isn't simply its U-value.
It's achieving that performance while remaining extremely thin.
Historic windows often contain slender glazing bars and relatively shallow glass rebates. Installing a conventional 24mm double-glazed unit can require significant alteration.
A vacuum unit can potentially sit much closer to the position previously occupied by single glazing.
That can allow traditional proportions, glazing bars and sightlines to be retained.
In some circumstances, vacuum glazing may even be capable of being incorporated into existing historic frames where those frames are suitable and the original glass isn't considered significant.
Historic England specifically recognises this possibility in its current guidance.
Is Vacuum Glazing Now Allowed in Listed Buildings?
This is where things have become particularly interesting.
There isn't a blanket rule saying vacuum glazing is now permitted in every listed building.
Every listed property and application still needs to be considered on its individual merits.
However, the direction of travel has clearly changed.
Historic England's 2026 Advice Note 18 – Adapting Historic Buildings for Energy and Carbon Efficiency states that installation of slim-profile or vacuum double glazing within historic frames will generally be acceptable.
It identifies exceptions including windows containing historic glass of interest, particularly important frames or glazing bars that cannot accommodate the glazing, and certain leaded-light windows. Listed Building Consent is also likely to be required when historic windows are being altered.
Historic England has previously acknowledged that attitudes towards vacuum glazing have gradually become more flexible.
That doesn't guarantee approval from an individual conservation officer or local planning authority, but it does provide a much stronger basis for considering vacuum glazing as part of a sensitive heritage upgrade.
Repair or Replace?
New technology doesn't mean every historic window should automatically be replaced.
Far from it.
Where an original historic window survives and is capable of repair, retaining and repairing it should normally be considered first.
Traditional windows can frequently be repaired, draught-proofed and upgraded.
Historic England reports that draught-proofing alone can reduce air leakage through windows by approximately 33–50%.
Where original windows have deteriorated beyond reasonable repair, or where later inappropriate replacements already exist, a carefully designed new timber window can provide an opportunity to recreate the correct historic appearance while incorporating modern performance.
The right solution therefore depends entirely upon the building.
The 2026 Building Regulations
Energy-efficiency standards are continuing to evolve.
England now has the 2026 edition of Approved Document L, supporting the energy and greenhouse-gas-emission requirements of the Building Regulations.
Windows are treated as controlled fittings and their thermal performance forms part of the overall regulatory requirements.
Importantly, the regulations and associated guidance also recognise that historic buildings sometimes require a different approach.
Historic England emphasises that compliance needs to balance energy efficiency with the significance and long-term preservation of historic fabric.
Ventilation must also be considered. Installing significantly more airtight windows can change how a building manages moisture, so Part F ventilation requirements and the behaviour of the existing building need to be considered alongside Part L. Updated Approved Document F guidance was also introduced in 2026.
What Is PAS 24?
Thermal performance isn't the only consideration when specifying a modern window.
Security matters too.
PAS 24 is a UK security standard used to assess the resistance of windows and doorsets to opportunistic attack.
It shouldn't be confused with an energy-efficiency standard.
Approved Document Q of the Building Regulations deals with security in dwellings and requires reasonable provision to resist unauthorised access in circumstances where Requirement Q applies, principally new dwellings.
For projects where PAS 24 performance is required, the complete window specification – frame, glazing, locks, hardware and construction – needs to form part of a compliant tested system.
This is another reason why choosing the correct window manufacturer and specification at the design stage is so important.
Working With Specialist Local Joinery
At South West Heritage & Development Ltd, we work very closely with an experienced local joinery company to provide bespoke timber windows and doors for our projects.
This relationship allows us to consider the window as part of the building rather than treating it as an off-the-shelf product.
Depending upon the project, windows can be designed around:
- Existing historic profiles
- Planning and Listed Building Consent requirements
- Conservation requirements
- Appropriate timber species
- Traditional glazing-bar proportions
- Modern weather seals
- High-performance glazing
- Vacuum glazing
- Ironmongery and security
- Ventilation requirements
- Part L thermal requirements
- PAS 24 requirements where applicable
The objective is straightforward: produce the best-quality window for the particular building while ensuring that the specification meets the relevant regulatory, planning and conservation requirements.
Modern Performance Doesn't Have to Mean Modern Appearance
This is perhaps the most exciting development.
For years, there has been an assumption that improving the performance of a historic window inevitably means compromising its appearance.
That gap is becoming considerably smaller.
Modern timber engineering, precision joinery and technologies such as vacuum glazing mean it is increasingly possible to produce windows that look entirely appropriate in a traditional building while offering levels of comfort and performance that would previously have required a much bulkier modern unit.
For listed buildings, conservation areas and high-quality traditional properties, that creates genuinely interesting possibilities.
The technology doesn't remove the need for careful design or consent.
What it does provide is another tool for preserving the appearance of our historic buildings while adapting them for the future.
Planning New Timber Windows for a Historic Property?
South West Heritage & Development Ltd specialises in the restoration, renovation and redevelopment of listed, historic and traditionally constructed buildings throughout Devon, Somerset and the wider South West.
Working closely with specialist local joiners and other conservation professionals, we can help develop window solutions that respect the character of the building while taking advantage of modern advances in glazing, security and energy efficiency.
Whether the right solution is careful repair, secondary glazing, bespoke replacement timber windows, slim-profile glazing or modern vacuum glass depends on the individual property.
If you're considering replacing or upgrading windows in a listed or historic building, contact South West Heritage & Development Ltd to discuss the project before committing to a specification.
